New » Honda » FourTrax Rancher 4x4 ES with Power Steering
Model Quick Search

$6,599.00

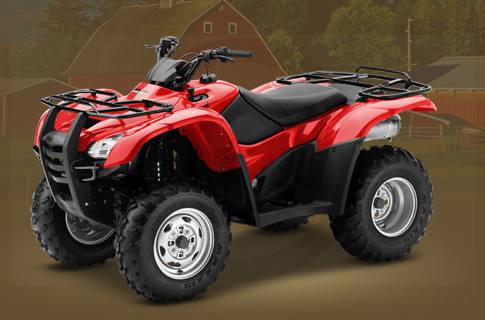

2010 Honda FourTrax Rancher 4x4 ES with Power Steering
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine Type: 420cc liquid-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke
    • Bore And Stroke: 86.5mm x 71.5mm
    • Induction: Keihin 34mm throttle-body fuel-injection system
    • Ignition: Full transistor with electronic advance
    • Starter: Electric with optional auxiliary recoil
    Drive Train
    • Clutch: Automatic
    • Transmission: ESP Five-speed with Reverse
    • Driveline: Direct front and rear driveshafts
    Chassis / Suspension / Brakes
    • Front Suspension: Independent double-wishbone; 6.3 in. travel
    • Rear Suspension: Swingarm with single shock; 6.3 in. travel
    • Front Brakes: Dual hydraulic disc
    • Rear Brakes: Sealed mechanical drum
    • Front Tires: 24 x 8-12
    • Rear Tires: 24 x 10-11
    Dimensions
    • Length: 80.9 in.
    • Width: 46.1 in.
    • Height: 45.1 in.
    • Wheelbase: 49.2 in.
    • Seat Height: 32.4 in.
    • Ground Clearance: 6.5 in.
    • Turning Radius: 10.5 ft.
    • Curb Weight: 605 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    • Fuel Capacity: 3.5 gal. (inc. 1.0 gal. reserve)
    Other
    • Note: No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
    • Emissions: Meets current EPA and CARB off-road emissions standards.
    • Available Colors: Red, Olive, White
    Factory Warranty Information
    • Duration: One year
    • Description: Coverage of defects in materials and workmanship

    Specifications

    Engine
    Engine Type 420cc liquid-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke
    Displacement 420 cc
    Bore x Stroke 86.5mm x 71.5mm
    Engine Cooling Liquid
    Fuel System Keihin 34mm throttle-body fuel-injection system
    Starting System Ignition: Full transistor with electronic advance; Starter: Electric with optional auxiliary recoil
    Chassis
    Front Suspension Independent double-wishbone; 6.3 in. travel
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic disc
    Front Tires 24 x 8-12
    Rear Suspension Swingarm with single shock; 6.3 in. travel
    Rear Travel 6.3 in.
    Rear Brake Type Sealed mechanical drum
    Rear Tires 24 x 10-11
    Dimensions/Capacities
    Dry Weight 605 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Fuel Capacity 3.5 gal. (inc. 1.0 gal. reserve)
    Ground Clearance 6.5 in.
    Machine Dimensions (LxWxH) Length: 80.9 in.; Width: 46.1 in.; Height: 45.1 in.
    Wheelbase 49.2 in.
    Drive Train
    Drive Train Clutch: Automatic; Driveline: Direct front and rear driveshafts
    Transmission ESP Five-speed with Reverse
    General
    Colors Red, Olive, White
    Warranty Duration: One year; Description: Coverage of defects in materials and workmanship

    Compare Models

    		 Print








    Year 2010
    Manufacturer Honda
    Model FourTrax Rancher 4x4 ES with Power Steering
    Style Utility
    MSRP* $6,599.00
    Chassis
    Front Suspension Independent double-wishbone; 6.3 in. travel
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic disc
    Front Tires 24 x 8-12
    Rear Suspension Swingarm with single shock; 6.3 in. travel
    Rear Travel 6.3 in.
    Rear Brake Type Sealed mechanical drum
    Rear Tires 24 x 10-11
    Frame
    Dimensions/Capacities
    Dry Weight 605 lbs. (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 3.5 gal. (inc. 1.0 gal. reserve)
    Ground Clearance 6.5 in.
    Machine Dimensions (LxWxH) Length: 80.9 in.; Width: 46.1 in.; Height: 45.1 in.
    Wheelbase 49.2 in.
    Drive Train
    Drive Train Clutch: Automatic; Driveline: Direct front and rear driveshafts
    Final Drive
    Transmission ESP Five-speed with Reverse
    Engine
    Engine Type 420cc liquid-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke
    Displacement 420 cc
    Bore x Stroke 86.5mm x 71.5mm
    Cylinders
    Engine Cooling Liquid
    Fuel System Keihin 34mm throttle-body fuel-injection system
    Starting System Ignition: Full transistor with electronic advance; Starter: Electric with optional auxiliary recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, Olive, White
    Warranty Duration: One year; Description: Coverage of defects in materials and workmanship
