New » Honda » FourTrax Foreman 4X4 ES With Power Steering
Model Quick Search

$7,399.00
$6,359.82
$1,039.18

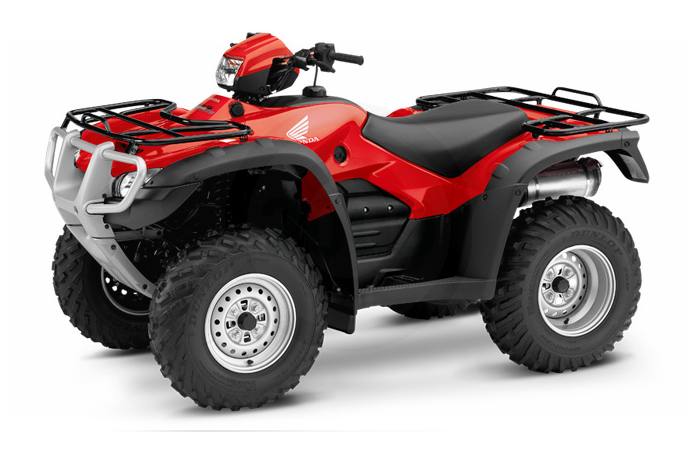

2009 Honda FourTrax Foreman 4X4 ES With Power Steering

Now until September 30, 2010
$1,039.18 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    ENGINE
    • Engine Type: 475 cc Air-Cooled OHV Longitudinally Mounted Single-Cylinder Four-Stroke
    • Bore x Stroke: 92 x 71.5 mm
    • Induction: 36 mm Constant Velocity Carburator
    • Ignition: CD With Electronic Advance
    • Starter: Electic With Auxiliary Recoil
    DRIVE TRAIN
    • Clutch: Automatic
    • Transmission: ESP Five-Speed With Reverse
    • Driveline: Direct Front And Rear Driveshafts With Traxlok And Torque-Sensitive Front Differential
    CHASSIS/SUSPENSION/BRAKES
    • Front Suspension: Independent Double-Wishbone, 6.7 in. Travel
    • Rear Suspension: Swingarm With Dual Shocks, 6.7 in. Travel
    • Front Brakes: Dual Hydraulic 180 mm Disc
    • Rear Brakes: Sealed 180 mm Mechanical Drum
    • Front Tires: 25x8-12
    • Rear Tires: 25x10-12
    DIMENSIONS
    • Length: 83 in.
    • Width: 46.8 in.
    • Height: 46.5 in.
    • Wheelbase: 50.7 in.
    • Seat Height: 33.9 in.
    • Ground Clearance: 7.5 in.
    • Turning Radius: 10.8 ft.
    • Curb Weight: 639 lbs.
    • Fuel Capacity: 4.1 gal. (Including Reserve)
    • Available Colors: Olive, Black, Red, Camo
    FACTORY WARRANTY INFORMATION
    • Warranty: One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Specifications

    Engine
    Engine Type OHV Longitudinally Mounted Four-Stroke
    Displacement 475 cc
    Bore x Stroke 92 x 71.5 mm
    Cylinders Single-Cylinder
    Engine Cooling Air-Cooled
    Fuel System 36 mm Constant Velocity Carburator
    Starting System Electic With Auxiliary Recoil
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.7 in.
    Front Brake Type Dual Hydraulic 180 mm Disc
    Front Tires 25x8-12
    Rear Suspension Swingarm With Dual Shocks
    Rear Travel 6.7 in.
    Rear Brake Type Sealed 180 mm Mechanical Drum
    Rear Tires 25x10-12
    Dimensions/Capacities
    Dry Weight 639 lbs.
    Fuel Capacity 4.1 gal. (Including Reserve)
    Ground Clearance 7.5 in.
    Machine Dimensions (LxWxH) 83 x 46.8 x 46.5 in.
    Wheelbase 50.7 in.
    Drive Train
    Drive Train Direct Front And Rear Driveshafts With Traxlok And Torque-Sensitive Front Differential
    Final Drive Direct front and rear driveshafts with Traxlok and torque-sensitive front differential
    Transmission ESP Five-Speed With Reverse
    General
    Colors Olive, Black, Red, Camo
    Warranty One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model FourTrax Foreman 4X4 ES With Power Steering
    Style Utility
    MSRP* $7,399.00
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.7 in.
    Front Brake Type Dual Hydraulic 180 mm Disc
    Front Tires 25x8-12
    Rear Suspension Swingarm With Dual Shocks
    Rear Travel 6.7 in.
    Rear Brake Type Sealed 180 mm Mechanical Drum
    Rear Tires 25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 639 lbs.
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 4.1 gal. (Including Reserve)
    Ground Clearance 7.5 in.
    Machine Dimensions (LxWxH) 83 x 46.8 x 46.5 in.
    Wheelbase 50.7 in.
    Drive Train
    Drive Train Direct Front And Rear Driveshafts With Traxlok And Torque-Sensitive Front Differential
    Final Drive Direct front and rear driveshafts with Traxlok and torque-sensitive front differential
    Transmission ESP Five-Speed With Reverse
    Engine
    Engine Type OHV Longitudinally Mounted Four-Stroke
    Displacement 475 cc
    Bore x Stroke 92 x 71.5 mm
    Cylinders Single-Cylinder
    Engine Cooling Air-Cooled
    Fuel System 36 mm Constant Velocity Carburator
    Starting System Electic With Auxiliary Recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Olive, Black, Red, Camo
    Warranty One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Current Promotions

    There are currently no promotions available for this product.
